What to do when Ad Exchange renders wrong ad sizes?

As a publisher, you often do your regular checks on your site. On desktop, all ads seem to be loading correctly. Mobile seems fine, but then you scroll down and notice an oversized 300×250. A 414×345 is displayed on a medium rectangle ad slot instead of the 300×250 you initially wanted even after you’ve defined the size inventory for your mobile unit.

There have been several reports in forums and boards about Ad Exchange rendering the wrong ad size in mobile views. This has been attributed to the Ad Expansion feature on Google Ad Manager. Ad slots are expanded to the maximum allowed space for a mobile device to give it a more organic fit in the content. At the moment, it is only available to backfill display and out-stream video ad slots on the mobile web. Not all ad slots are eligible for expansion, though.

To uphold the ad’s aspect ratio, it may expand to the width of the device, while the height may be equal but only when appropriate. There are instances that it will not always fill to the device’s size in width and height. According to Google Support, these instances are:

• Only expand to the container width. The container width is x, while the device width is greater than x.
• Expand by width but not height.
• Don’t expand at all.

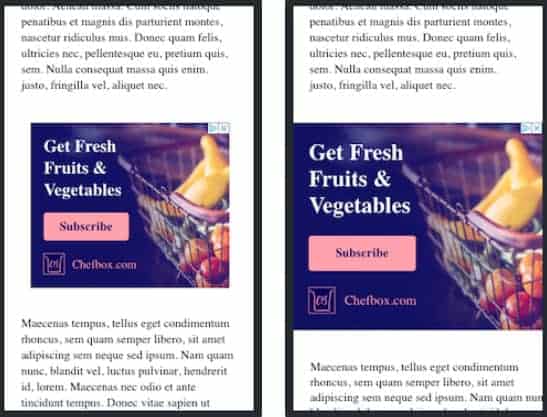

You will see something similar to these:

The left image is the ad displaying your set inventory size, for example, 300×250. With the Ad expansion feature, the ad will appear like the image on the right, a 414×345.

The expansion will attempt to fit the device’s width, as long as the content is not being overlaid. According to Google Support:

• If the overlap is detected with device width expansion but not with container width expansion, the container width will be used.
• If the overlap is detected with both container width and device width expansion, the slot won’t be expanded at all.

This feature is enabled for all users, but being able to control (enable or disable) it is only available for paid accounts on Google Ad Manager 360. For non-paying users, Ad Contraction is the other feature you can control, which is the opposite of Ad Expansion. This allows smaller creatives to deliver other than the specified inventory size/s.

If you are using Google Ad Manager 360, you can disable this feature at the network level by:

1. Signing in to Google Ad Manager.
2. Click Admin, then Global Settings, and then Network Settings.
3. Disable Ad expansion for mobile web under “Ad serving settings.”

For Unified Pricing Rules this is also applicable. However, if you have set-up size-specific rules, it will only apply to requested sizes. This means that if the ad comes back with an expanded size, your UPR will not apply.

Impact of Ad Expansion on Revenue

The Ad Expansion feature enhances user experience by allowing ads to fit more organically within the content. However, this feature can lead to discrepancies in expected ad sizes, which may have significant implications for revenue generation.

Discrepancies in Expected Ad Sizes

When ads expand beyond their designated sizes, it can confuse both publishers and advertisers regarding the actual dimensions being served. For instance, a 300×250 ad slot displaying a 414×345 ad may not align with the expectations set during the campaign planning phase. This misalignment can lead to several issues:

• Click-Through Rates (CTR): Ads that do not conform to expected sizes may not resonate well with users. Research indicates that ads that fit seamlessly into the content tend to perform better in engagement. Users who perceive an ad as out of place or oversized may be less likely to click on it, adversely affecting CTR and overall campaign effectiveness.
• User Experience: An oversized ad can disrupt the user experience, increasing bounce rates. Users may find the content less appealing if they feel overwhelmed by large, intrusive ads, which could reduce the time spent on the site and affect overall revenue.

Engagement Metrics

Engagement metrics can vary significantly between expanded ads and standard-sized ads. Expanded ads may initially seem beneficial as they occupy more screen space, potentially increasing visibility. However, the actual performance can differ:

• Standard Sizes vs. Expanded Ads: Standard-sized ads are often optimized for specific placements and user interactions. They are designed based on historical data regarding user behavior and engagement. In contrast, expanded ads may not have the same optimization level, leading to lower engagement rates.
• Ad Fatigue: Users may experience ad fatigue when exposed to oversized ads that do not align with their expectations. This fatigue can diminish the effectiveness of future campaigns as users become desensitized to the brand’s messaging.

Revenue Implications

The implications of ad expansion on revenue are multifaceted:

• Fill Rates: If expanded ads do not meet the criteria set by advertisers, it could lead to lower fill rates for specific ad sizes. Advertisers may choose to withdraw their campaigns if they find that their ads are not being displayed as intended, leading to lost revenue opportunities for publishers.
• Long-Term Relationships: Consistent discrepancies in ad sizes can strain relationships between publishers and advertisers. Advertisers expect their campaigns to run as planned, and if their ads are not displayed correctly, it can lead to dissatisfaction and a reluctance to invest in future campaigns.

Responsive Design Techniques for Ad Units

To ensure optimal display and user engagement, you need to implement responsive ad units that automatically adjust based on the device’s viewport. Here are some examples of effective, responsive design techniques for ad units:

1. Fluid Ad Sizes

Fluid ad units adapt their size to the available space on the page, ensuring they fit seamlessly within the content. These ads can expand or contract horizontally while maintaining their aspect ratio, allowing them to work across various screen sizes and orientations. Example: A 300×250 medium rectangle ad that expands to 728×90 on larger screens and adjusts to 320×100 on mobile devices.

2. Viewport-Based Sizing

Viewport-based sizing uses CSS media queries to adjust the ad unit’s dimensions based on the device’s viewport width. This technique allows for precise control over the ad’s size, ensuring it occupies the optimal space on the screen without disrupting the user experience. Example: A 728×90 leaderboard ad that switches to a 300×600 half-page ad on larger screens and a 320×50 mobile banner on smaller screens.

3. Responsive Image Ads

Responsive image ads use a combination of HTML and CSS to automatically select the most appropriate image size for the available space. This technique ensures that high-quality images are displayed without compromising load times or user experience. Example: A 300×250 medium rectangle ad that displays a 1200×628 image on larger screens and a 640×360 image on mobile devices.

4. Flexible Grid Layouts

Flexible grid layouts use CSS to create a grid-based system that adapts to different screen sizes. This technique allows for the rearrangement and resizing of ad units based on the available space, ensuring a consistent and visually appealing layout across various devices. Example: A 3×3 grid of 300×250 medium rectangle ads that collapses into a single column of 320×100 ads on mobile devices.

5. Adaptive Content

Adaptive content techniques use JavaScript to detect the user’s device and serve content optimized for that specific device. This includes adjusting the ad unit’s size, format, and even the type of ad creative displayed to ensure the best possible user experience. Example: A 728×90 leaderboard ad that displays a video ad on desktop devices and a static image ad on mobile devices.

Defining ad slots that accept multiple sizes

By defining ad slots that accept multiple sizes to accommodate various creatives, publishers can improve fill rates and revenue. This flexibility not only enhances the overall user experience but also allows for better alignment with advertisers’ goals, leading to more successful campaigns. Embracing responsive ad units and implementing best practices in ad design will empower publishers to navigate the complexities of programmatic advertising effectively, ultimately driving greater success in their monetization efforts.

Still not sure how to handle ads not rendering the correct size? How about sorting out any other ad optimization issues that are causing you to lose out on revenue? Let MonetizeMore help! Our ad ops teams can help solve any ad optimization issue and optimize your ad inventory for maximum revenue. Sign up to MonetizeMore now!
